Longhe Series Tutorial: How to Maintain Your Plastic Mixer

VM Vertical Color Mixing Machine Maintenance Tutorial

  53
Issuing time:2024-08-31 11:33Author:longheSource:Original

①:Power Off

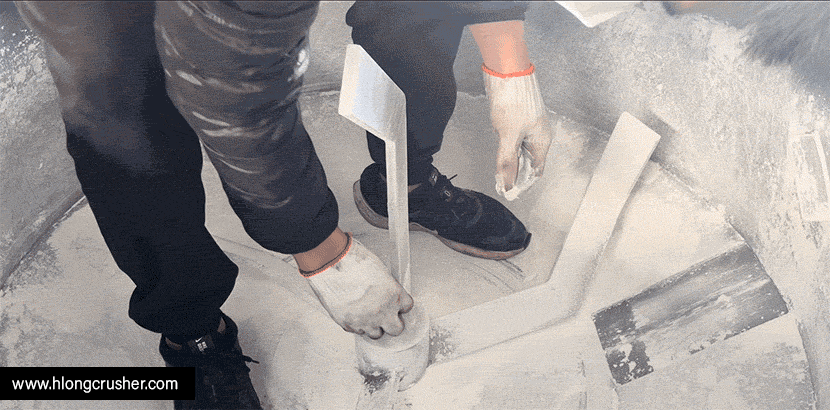

②:Remove the central fixing screw of the blades

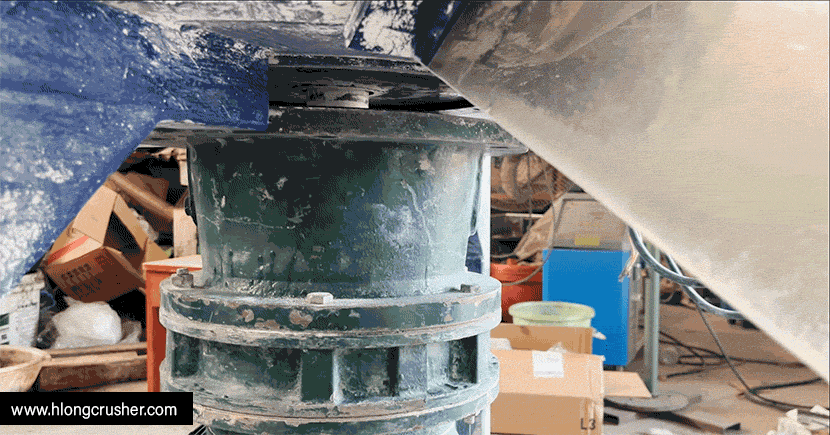

③:Loosen the bottom fixing screws and remove the reduction motor

【Large Equipment VM150-300kg】 Use a lifting eye bolt to secure it to the shaft, lift the equipment, then slowly lower the reduction motor after loosening the bottom screws.




【Small Equipment VM25-100kg】 Flip the machine, loosen the bottom screws, and then remove the reduction motor.

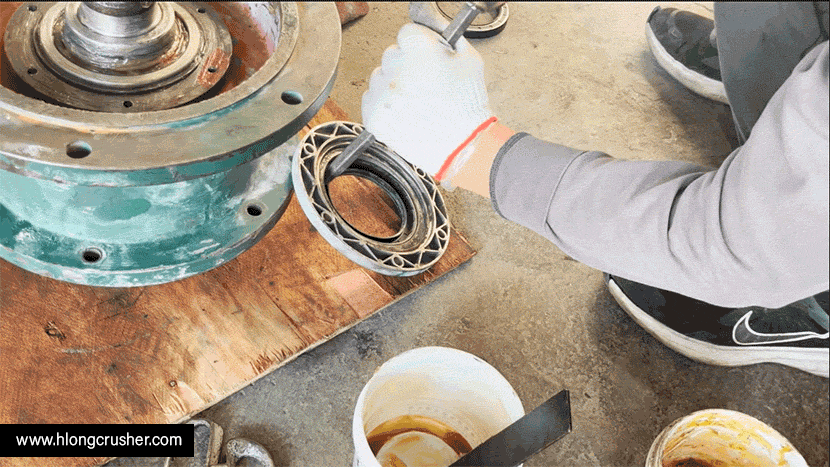

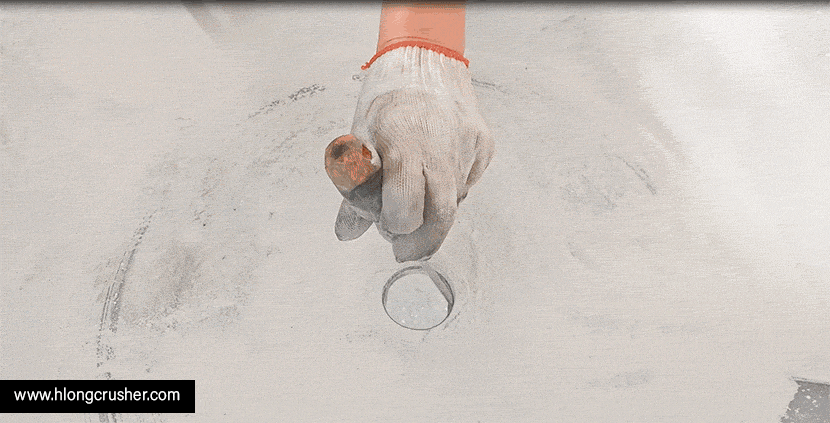

④:Remove the oil seal

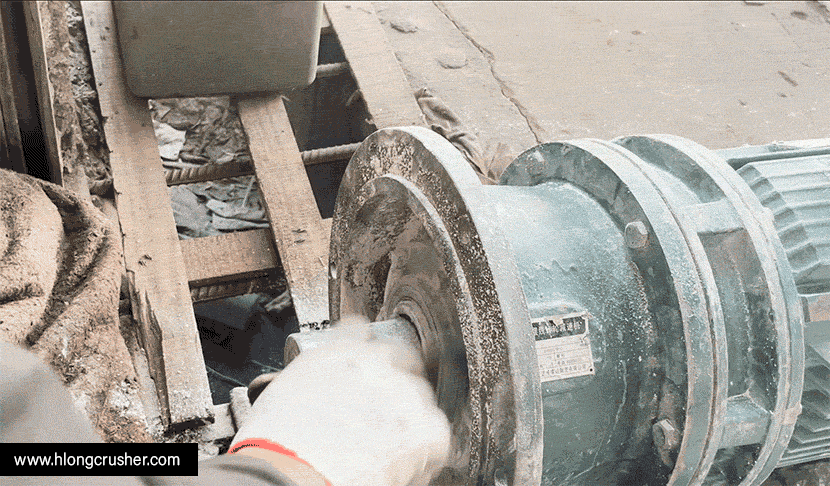

Clean the equipment and the reduction motor, then refill with new lubricant oil (refer to the reduction motor disassembly tutorial for details)






⑥:Replace the oil seal and the barrel cover gasket

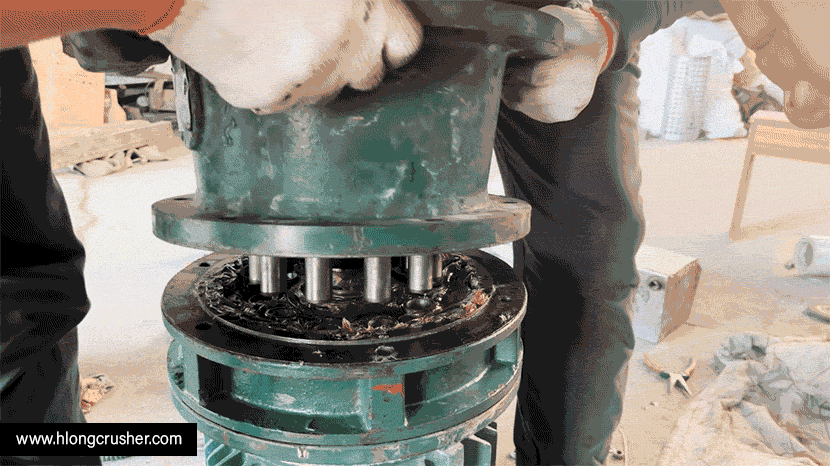

⑦:Reinstall the reduction motor and blades in sequence




⑧:Reconnect the power and check the operation of the equipment, ensuring that the wiring is properly secured
