[HS-200]How to use the high speed drying mixer

Steps

Illustration

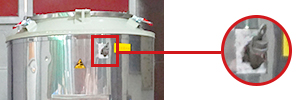

Add Oil: Pour high-temperature thermal oil into the oil port until it’s detectable (see Fig. 1).

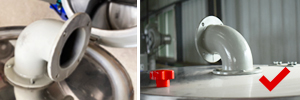

Install Exhaust: Remove the exhaust vent inside the cover and attach it externally (see Fig. 2).

Add Material: Lock the cover, and connect power as shown (see Fig. 3).

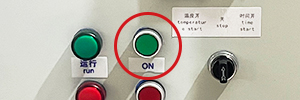

Power On: Switch on the main power, press “NO” to start (see Fig. 4).

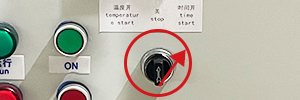

Set Time and Temperature: Turn the black knob to the timer position and set the desired temperature/time (see Fig. 5).

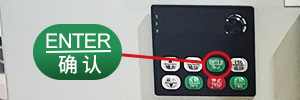

Start Operation: Press the inverter’s start button to activate the machine (see Fig. 6)

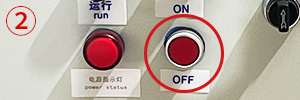

Stop Operation: Press button ① for a temporary stop; for a long shutdown, press ① then ②, and turn off the main power (see Fig. 7)
